Compact Scalable PA System
The Yorkville Sound Excursion EXM400 Compact PA is a 400 watt, four channel Bluetooth enabled active stereo system built with mobile live sound in mind. Lightweight compact extension speakers, innovative pole-through connectivity and versatile input / mixer functions ensure the EXM400 can easily be used in small solo or duo performances, DJ applications, conferencing and public address functions.
Ultra Compact Complete Four Channel Active Stereo PA System
Rugged Lightweight ABS Cabinet Design
Ideal for Live Sound, Mobile DJ or Conferencing Applications
On Board Digital Effects
Bluetooth Enabled
Expandable
Made in Canada
Check out our video on the EXM400 here

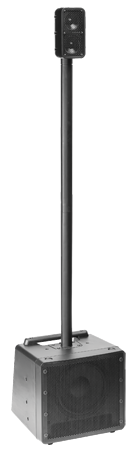

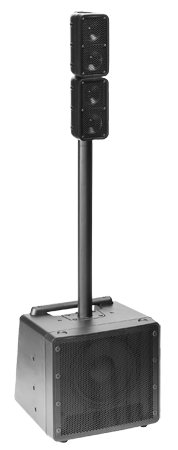

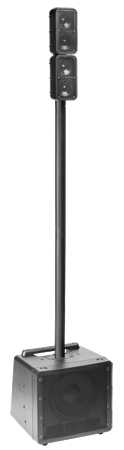

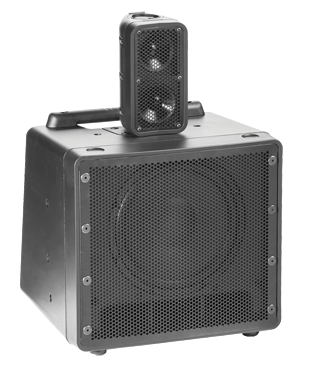

Designed for maximum mobility, the center of the EXM400 is a compact powered subwoofer module with integrated mixer. Two high efficiency satellite speakers and two speaker poles complete the core package. Connectivity between subwoofer / mixer and satellite speakers is handled with innovative pole through conductors, meaning no extra cabling is required.
Integrated 24-bit digital effects ensure the EXM400 can be used for live musical performances without need of cumbersome external signal processing. A padded nylon carry bag is included with the package to maximize user convenience.
A dedicated Bluetooth channel means direct connection of any Bluetooth enabled audio device for music playback can be made without additional cables. This makes the EXM400 the ideal compact high fidelity conferencing / presentation and public speaking system.
| Active or Passive | Active |
| Power Rating (Watts) | 400 Watts (800 Watts Peak) |
| Nominal Impedance (Ohms) | 4 ohms (sub), 8 ohms (satellites) |
| Max SPL (dB) | 121dB |
| Frequency Response (Hz +/- 3dB) | 50Hz – 20kHz |
| Crossover Frequency (Hz) | 240Hz |
| HF Driver(s) | 2 x 3.5″ per satellite |
| HF Power Rating (Watts) | 75W per channel |
| HF Impedance (Ohms) | 8 |
| HF Protection | Peak and RMS limiting |
| LF Driver(s) | 1 x 10-inch |
| LF Power Rating(Watts) | 250 |
| LF Impedance (Ohms) | 4 |
| LF Protection | Peak and RMS limiting |
| HF Amplifier Type | Class AB Half Bridge |
| LF Amplifier Type | Class D Full Bridge |
| Cooling Scheme | Passive convection |
| Channel 1 Input | Combi-jack XLR & 1/4-inch (Microphone / Instrument) |
| Channel 2 Input | Combi-jack XLR & 1/4-inch (Microphone / Line Input) |
| Channel 3 Input | 2 x ¼-inch Input (Stereo) / 1 x 1/8th Input (Stereo) |

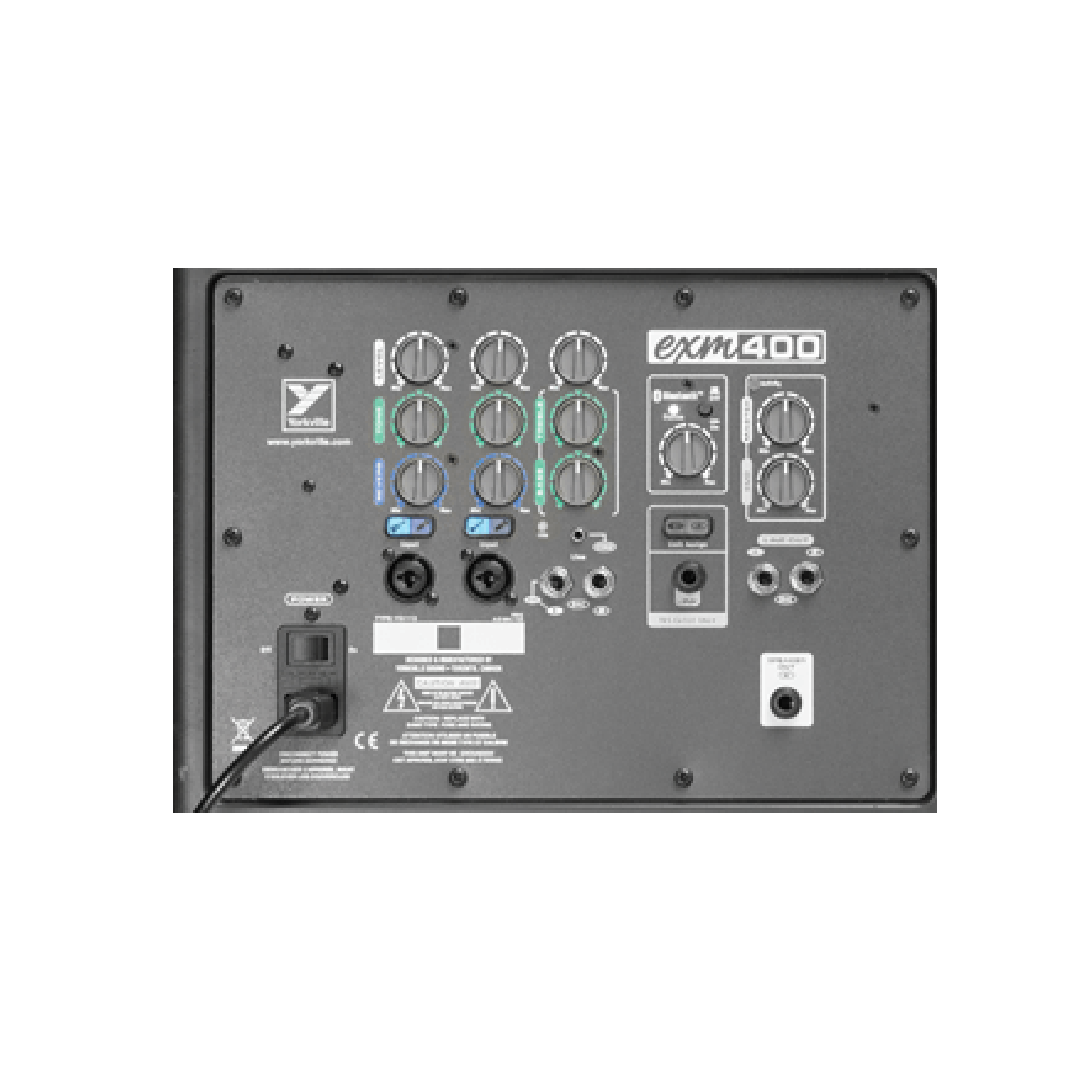

| Mixer Controls | Bluetooth Input Ch. 1 & 2: Level / Tone / Reverb Ch. 3/4 Level / Treble / Bass Bluetooth Level, Sub Level, Master Level |
| Optional Accessories | EXM400SATKIT for additional Power and Coverage |
| Dimensions (DWH xbackW, inches) | sub- 14.5/15.5/14.5 Height assembled system- 78 |
| Dimensions (DWH xbackW, cm) | sub- 36.8/39.3/36.8 height assembled system-198 |
| Weight (lbs/kg) | 43 / 19.50 |
Specifications subject to change without notice
800w, 6 channels Mixer/Amp

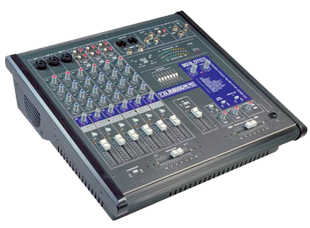

The DJM806 is the world’s first high powered mixer designed specifically for disc jockey and karaoke applications. This mixer has all of the desired features including an equalizer, digital effects and a high power, fan-cooled stereo amplifier. The rugged amplifier delivers 800 Watts of clean, stereo power – perfect for mobile DJs.
* Warranty valid in U.S. and Canada only
The DJM806 has a heavy gauge metal chassis, highly efficient Silentfan™ cooling and a toroidal power supply. The 19″ rack-mountable DJM806 is a totally self-contained system that minimizes setup/tear-down time while maximizing value with outstanding performance and features.
| Number of Channels | 6 |
| Mono Channel EQ | (MIC 1/2/3) Low, Mid, High |
| Stereo Channel EQ | (CH 1/2/3) Low, Mid, High |
| Channel Effects | Yes |
| Monitors Effects | N/A |
| Crossfader (Function / Length) | Channel Fader – 60mm,Cue Fader- 60mm |
| Inputs – 1/4″ / XLR Combi | 3, Mic 1/2/3 |
| Inputs – RCA (unbal) | 6 pair |
| Mute Switches | All Channels (Cue Switch) |
| Line / Phono Level Switches | Ch 1/2/3 |
| Clip / Mute LED | All Channels, Effects Section, Amp |
| VU Meter | 12 LED with Floating Peak Switchable (Main/Cue) |
| Headphone Monitor Features | Yes (Switchable) |
| Internal Effects | Digital 16 Bit; 255 Effects |
| Effects Send | 1 Internal |
| Effects Return to Main | Yes |
| Effects Return to Monitor | N/A |
| Record Outputs | Zone 1=3x 1/4 inch Stereo/Mono, Zone 2=RCA** |
| Max Gain to Line Out -Mic Input (dB) | 58 |
| Max Gain to Line Out -Line Input (dB) | 31 |
| Master EQ -1 (type/Channels/Range -dB) | Graphic / Stereo / 7 Band 40 Hz – 15,000 Hz |
| Main Outputs (Line Level) | 2x XLR, 2x 1/4 inch TRS |
| Main Amp Inputs (Line Level) | 2x 1/4 inch (TRS) |
| Outputs – Amp A – 1/4″ Jacks | 2 |
| Outputs – Amp A – Speakon 4-pin | 1 |
| Outputs – Amp B – 1/4″ Jacks | 2 |
| Outputs – Amp B – Speakon 4-pin | 1 |
| Mixer – Signal to Noise Ratio (dB) | 100 |
| Mixer – Freq Resp (Tone and EQ Flat,�2dB) | 20 Hz – 20,000 Hz |
| Mixer- Input Ref Noise to line out @150 Ohms(dBv) | -117 |
| Mixer THD (Main out w/ -10dB input) | less than 0.05% |
| Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz) | 240 |
| Amp A – Power Output @ 4 Ohms | 400 |
| Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz) | 240 |
| Amp B – Power Output @ 4 Ohms | 400 |
| THD – 1kHz (dB) | less than 0.03% |
| THD – 20Hz-20kHz (dB) | less than 0.1% |
| Hum and Noise (un / Aweight -dB) | -101 |
| Typical crosstalk -1 kHz (dB- | -66 |
| Input Impedance – Bal/Unbal (Ohms) | 2200/10K |
| Input Sesitivity (Vrms Sine) | 1.47 V |
| CMRR @ 60Hz (min/typ) | 54 dB / 66 dB |
| Max Votage Gain (dB) | 29 |
| Power Consumption (typ/max) | 660 VA / 1200 A |
| Protection | Thermal / Load / DC |
| Cooling | Variable Speed DC Fan |
| Transformer Type | Toroidal |
| Finish | Scratch Resistant Vinyl-Coated Aluminum Top |
| Chassis Construction | Heavy Gauge Metal |
| Rackmount | Yes (RK812) |
| Console Lamp Connector 12V DC (BNC) | Yes |
| Other Features | **Zone 1 pre/post EQ. Zone 2 pre EQ. |
| Dimensions (DWH, inches) | 18 x 19 x 5.5 |
| Dimensions (DWH, cm) | 45.7 x 48.3 x 14 |
| Weight (lbs/kg) | 38 / 17.3 |
Specifications subject to change without notice
